Greenhouse Air Circulation Fan

product description:

1) The outer frame of the circulating fan is made of high-quality stainless steel, which is beautiful in appearance and does not rust.

2) The fixed frame is an adjustable angle type, which can adjust different air supply angles according to the needs, and the fixing is firm and the operation is stable.

3) The fan blades are made of aluminum plate integrally stamped and formed, with beautiful appearance, light weight, large air volume, and small vibration

4) High-quality fully enclosed international motor to ensure good operation of the fan

SPEC.

Air Circulation Fan：

Type：500 diameter

Shell material： steel coating with plastic

Shell thickness：0.9mm

Blade Material：Aluminum plate, five blades

Blade thickness：1.0mm

Motor power：180w

Motor Speed：1400 rpm/min

Blade Speed：1400 rpm/min

Wind Capacity ：4200 cbm/h

Noise：>70

Voltage：380V/50HZ

Package size：580*580*300mm

The role of the circulation fan:

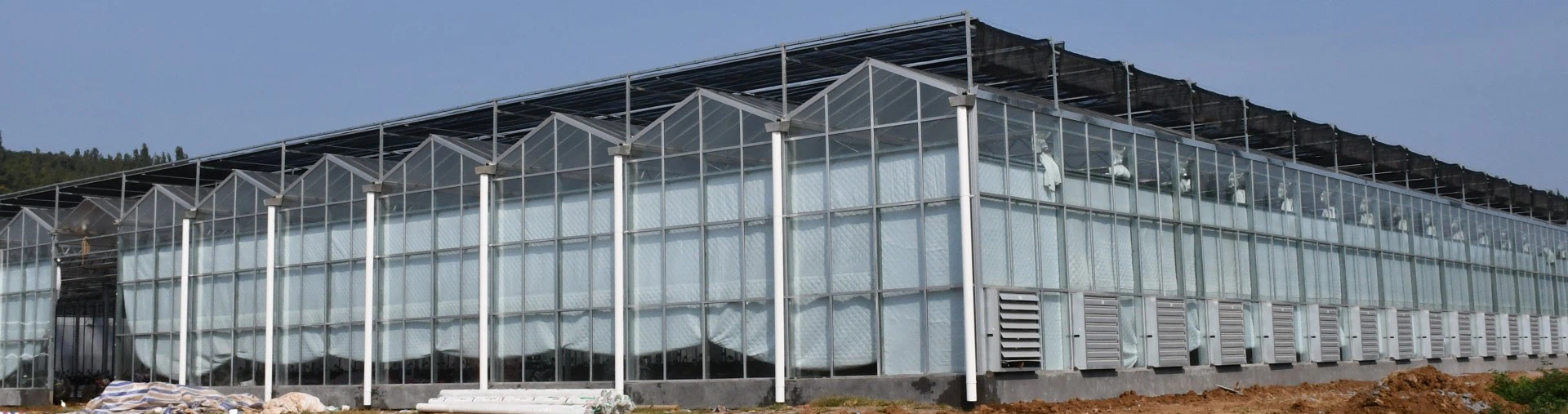

In addition to the main structure of a modern greenhouse, it is also necessary to configure various supporting equipment according to the situation to meet different needs, one of which is a very important ventilation system. The ventilation system includes natural ventilation and a 2-layer system with exhaust fans. Relying on the natural ventilation system is a way to ventilate the greenhouse and adjust the room temperature. It can be divided into top window ventilation, side window ventilation and top side window ventilation. The exhaust fan is generally placed on the wall or window on the leeward side of the greenhouse in summer. The circulating fan is installed in the indoor mid-air according to a certain direction.

The role of the circulation fan:

The circulating fan increases the fluidity of the indoor air, so that the air reaches the circulation and greatly improves the indoor air environment. Special circulating fan for greenhouse:

It is resistant to high temperature and humid environment, made of stainless steel, and is safe to use.

Energy saving, compared with domestic products of the same type, it can save energy consumption by more than 30%.

Equipped with new suspension fasteners, stable operation and stable wind direction.

Low noise.
