Company Profile
Our company headquarters is located in Qingzhou City, Shandong Province, China. We provide integrated services including Greenhouse project design, construction building, and after-sales service. With more than 15 years of greenhouse solution experience, we have our design team, have our workshops. our products feature: low carbon, environmental protection, energy saving, high reliability, high quality, and cost-effective.
Our main products: are film Greenhouses, Glass Greenhouse, polycarbonate sheet Greenhouse, etc., as well as accessories, and related equipment. Our company culture is BUILDING FOR TODAY ABD TOMORROW, CREATING SOLUTIONS THROUGH INNOVATION.
Why Choose Us
Design Concept
This project belongs to the Plant Intelligent Greenhouse project, which is mainly used for planting vegetables and flowers. The project construction content includes a greenhouse foundation, greenhouse main structure, covering material, natural ventilation system, outside shading system, water pad cooling system, rainwater drainage system, heating system, power distribution, and control system.
Our design concept for this project is "adhere to the scientific and practical principles; Adhere to the principle of improving the utilization rate, energy saving, water saving and high efficiency of land resources; Adhere to the principle of advanced, reliable and applicable greenhouse structure materials and equipment procurement; Adhere to the principle of world leadership.
Therefore, according to the construction requirements, we choose the best domestic products in the key components of each system.
Greenhouse Loads Data and Standards
The main design technical parameters of this project
(1)Wind load: 0.5 KN/m2
(2)Snow load: 0.45KN/m2
(3)Maximum rainwater drainage capacity: 140mm/h
(4)Greenhouse dead load: 20Kg/m2
(5)Heating temperature difference: delta T=27℃ (outdoor 10℃, indoor 10-37 ℃)
(6)Requirements for greenhouse foundation engineering: according to the geological conditions on site, the design should refer to the national standard "design scope of building foundation" (GB J50007-2002)
(7)Electrical parameters: Can be customized according to customer requirements.
Quality Assurance
All steel material for the greenhouse frame we use must be inspected by professional QC. We strictly inspect the product according to the national standard before shipment. All steel materials must use hot dip galvanized tubes with famous brands in China.
Various Types
Our agricultural greenhouse can be of various types to suit your specific planting needs according to the customer's local climate, including a sible film greenhouse, multi-span film greenhouse 8mm polycarbonate greenhouse, and Venlo glass greenhouses, with different ventilation designs. each of which can be custom-designed and manufactured to suit the customer's project.
Wide Range of Applications
We specialize in offering high-quality agricultural greenhouse solutions that cater to different farmer and planting requirements such as small farm, large farm, personal use, or government use, for different crops, such as tomato, cucumber, lettuce, pepper, mushroom, flowers, even for cow farm.
Professional Technical Team And Rich Experience
We have been in agricultural greenhouse manufacturing for more than 15 years. We offer engineers to help you install the greenhouse in your local and provide free technical advice services.
The Advantages of An Agricultural Greenhouse
Agricultural greenhouses provide an excellent growing environment for crops.
01
Greenhouse provides an ideal environment for plants to thrive, regardless of the climatic conditions outside. The controlled temperature, humidity, and lighting that a greenhouse offers create the perfect conditions for plants to grow all year round. This means that crops can be grown in any season, giving farmers a consistent and reliable food supply.
02
Greenhouses help to protect plants from harmful insects, pests, and diseases. With proper maintenance and care, a greenhouse can significantly reduce the amount of damage that plants would have otherwise suffered if grown outdoors.
03
In a greenhouse, there is greater control over the soil's nutrients, which allows crops to flourish and produce high yields.
04
Greenhouses also offer a unique opportunity to connect with nature and develop a deeper appreciation for the environment.
In conclusion, the use of a greenhouse has countless advantages, from providing an optimal environment for plant growth to protecting crops from pests and diseases.
The agricultural greenhouse is a structure designed to efficiently trap the sun's warmth and light to create a carefully controlled environment for plants to grow. It typically consists of a translucent roof and walls made of materials such as glass or plastic, which allow sunlight to enter while preventing heat from escaping. The precise regulation of temperature, humidity, and air circulation in a greenhouse provides optimal growing conditions for a wide variety of plants, from tropical fruits to delicate flowers. Greenhouses are an important tool for modern agriculture, allowing farmers to extend growing seasons, increase yields, and cultivate crops in regions with harsher climates.
Components of Agricultural Greenhouse
A large vegetable agricultural greenhouse consists of several key components and systems These systems include:
Greenhouse steel frame as main structure:
Base Foundation
A greenhouse foundation, also known as a greenhouse base, is an essential component for constructing a successful greenhouse. It provides the foundation and stability for the entire structure, thereby ensuring that the greenhouse is durable and functional for years to come. A well-constructed greenhouse foundation is typically made up of sturdy materials such as concrete, brick, stone, or steel. These materials provide the necessary strength and stability to support the weight of the greenhouse and withstand external factors such as wind, rain, and snow. Specific considerations such as location, soil type, drainage, and wind load should be taken into account when designing the foundation to ensure its optimal performance.
The embedded depth of the independent point foundation in the greenhouse is about 0.6m under 0.000, and an independent foundation is adopted in the greenhouse. Around the greenhouse, 0.8 meters 0.8-meter-high brick wall skirt is set, of which 0.50m above ±0.000 and 0.3m below ±0.000 are reinforced concrete ring beams with a height of 300mm and a width of 250mm. The embedded anchor bolt at the top of the foundation and foundation beam is used to connect the superstructure column. The greenhouse is surrounded by 80cm wide concrete to disperse water outside the greenhouse water distribution facilities outside the drain. Greenhouse foundation civil engineering, around the drainage ditch can be built by the owner. The design is based on the national standard "code for design of building foundation" (GB J50007-2002)
Greenhouse Steel Frame
A greenhouse column is a very vital component of the greenhouse structure. It is typically made of sturdy and durable material, the agricultural greenhouse column uses square tubes in common.
All steel structure materials used in the greenhouse are made of national standard high-quality black steel.
All columns, trusses, and other components and joints are processed and welded first, and then hot-dip galvanized;
Site assembly, no welding.Metallic coatings-- Hot dip galvanized steel all other steel parts and fasteners shall be made according to GB/T 13912-2002 Metallic coatings-- Hot dip galvanized steel
The connecting fixed parts are mainly used in line with the GB5782 standard and are treated by hot dip galvanization. The service life of the main structure of the greenhouse is not less than 20 years.
(1) Specifications of main profiles:
Foundation: the strip foundation with a low wall of 0.8 meters high is adopted around the greenhouse, and the independent point foundation is used inside.
(2) The greenhouse framework is a light steel structure, which is made of domestic hot-dip galvanized steel.
The columns adopt 50*100*3.0mm hot-dip galvanized rectangular pipes.
The end columns adopt 50*50*3.0mm hot-dip galvanized rectangular pipes.
The side auxiliary columns adopt 30*50*2.0mm hot-dip galvanized rectangular pipes.
The girders adopt 50*50*2.0.mm hot-dip galvanized rectangular pipes.
The arch pipes adopt 32*1.5mm round pipes
The external awning columns adopt 50*50*2mm hot-dip galvanized rectangular pipes.
The external sunshade bars adopt 50*50*2mm hot-dip galvanized rectangular pipes
The external sunshade longitudinal bars adopt 50*50*2mm hot-dip galvanized rectangular pipes.
The thickness of the galvanized layer of the main frame of the greenhouse is 0.06-0.08mm, GB/ t3091-93 is used for hot dip galvanized.
The gutter is made of B=2.0mm thick cold-bending hot-dip galvanized steel plate, and the slope of the water gutter is 2.5‰ for drainage.
Each connector adopts a hot-dip galvanized bolt.
Greenhouse Shading System
Inside the shading system and thermal insulation system to shade and cool the temperature and regulate the growth of crops in summer, this project is combined with the external shading system.
In summer, because the solar radiation heat load into the greenhouse is too high, although the greenhouse with ventilation, the greenhouse of high temperature, low humidity environment is unfavorable for crops growing.
The indoor temperature can be controlled to only 1 degree higher than the outdoor temperature in the greenhouse with good ventilation. But about the outside shading system, due to blocking some solar radiation from entering the greenhouse, through
high-strength black UV polyester line is used, external shading screen with a shading rate of 75%.
Good shading effect in summer, good heat preservation effect in winter, and low operation cost.
According to the customer's requirements, the inside shading system and the outside system can all be adopted. The customer can also choose between the inner and outer shading systems.
Greenhouse Cooling System
Wet curtain fan cooling system
A wet curtain and fan system is a means of forced cooling in a greenhouse in summer.
In the cooling system of a wet curtain fan, the sensible heat in the air is changed into latent heat when water evaporates. More water evaporates
Less is proportional to the difference in saturated vapor pressure of the air.
The drier the air, the higher the temperature, and the greater the cooling range of air through the wet curtain.
Working principle: the wet curtain is installed on the gable or side wall at one end of the closed greenhouse, and the fan is installed on the gable or side wall at the other end. When the fan draws air, the indoor negative pressure is generated, forcing the outdoor unsaturated air to flow through the wet curtain
When the surface is moistened, a large amount of sensible heat in the air is converted into latent heat, which forces the dry bulb temperature in the indoor air to drop by 4 ~ 12℃, and it is continuously introduced into the room for heat prevention and cooling.
In the gable of the end mountain of the greenhouse, a single fan with a flow of 42000m3/h is used to resist the strong wind, with 1-2 fans per span.
Greenhouse Covering Material

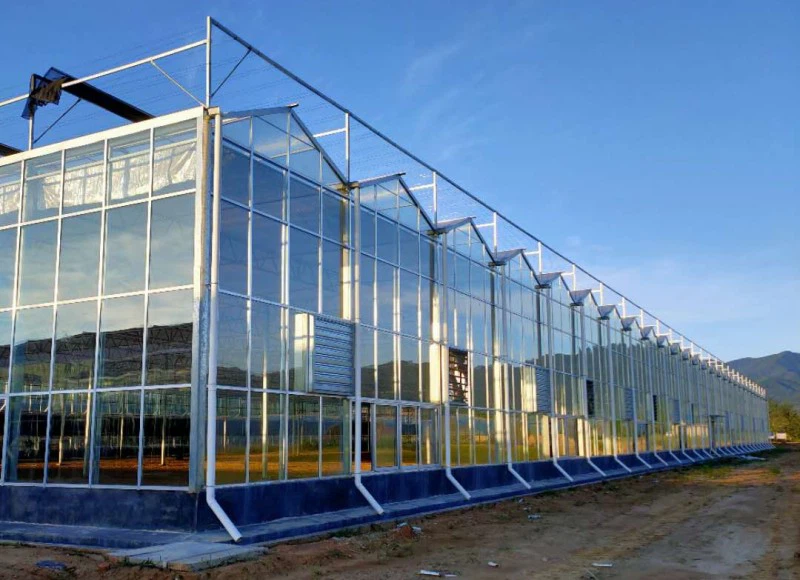

Glass greenhouse cover 4mm glass on the roof and side wall can be 4mm single layer glass or hollow glass on the 4 sides surrounding glass.
Polycarbonate greenhouse always covers 8mm polycarbonate board on the roof and side walls. Polycarbonate with low cost, good warm keep, and 10 years lifetime, etc advantages.

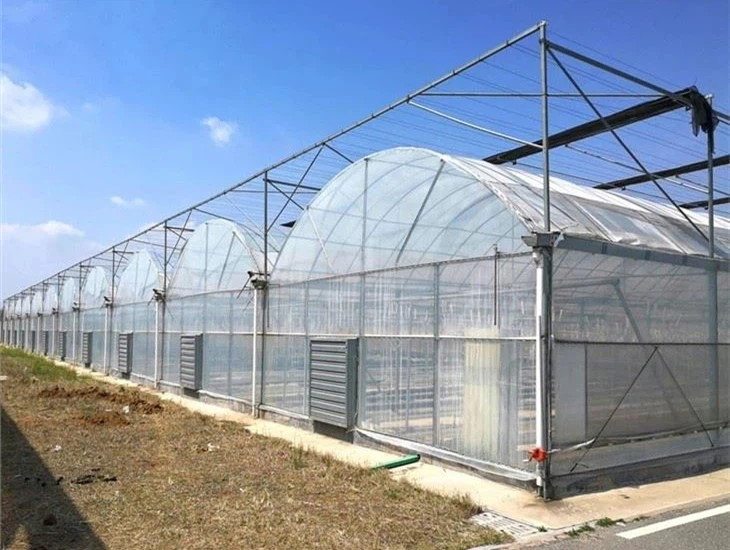

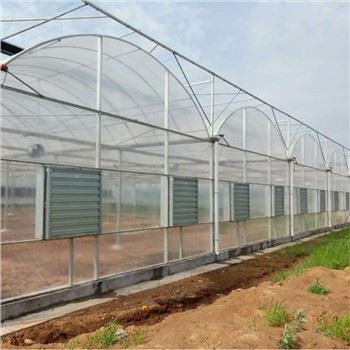

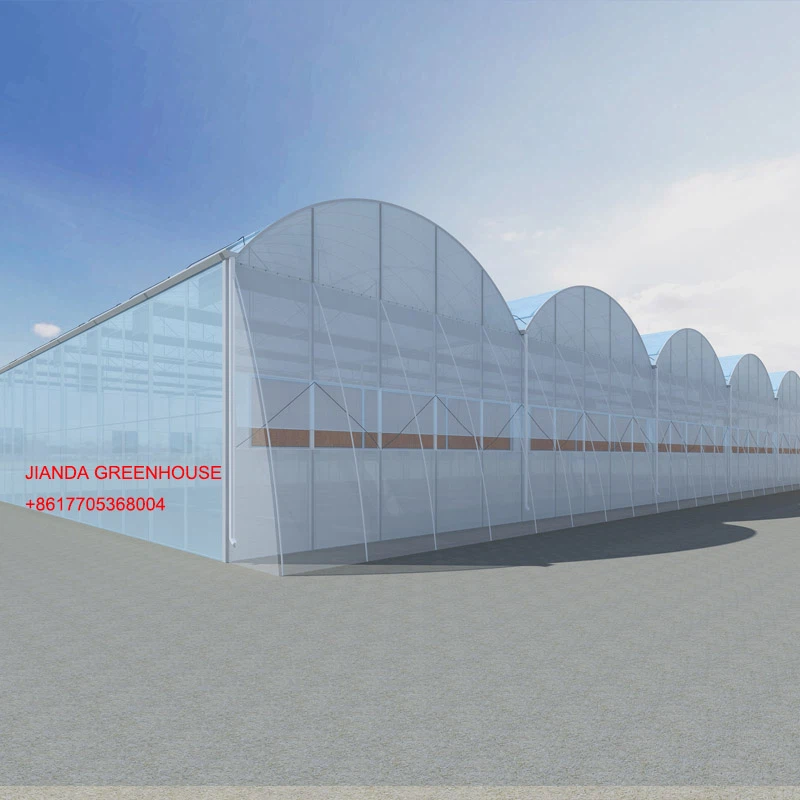

Multi-span film greenhouse always covering film, can be 150-micron film and 200-micron film, PO/PE film is clear or blue, with UV treatment, lifetime is 3 to 5 years.
Drainage System
The greenhouse is made of hot-dip galvanized steel gutter.
Gutter and gutter connection use gutter adhesive.
The greenhouse will be built by the two-way slope. To prevent freezing cracks in water pipes in winter, the rainwater will be drained from the gable columns to the gutters built by users.
The designed maximum displacement is 140mm/h (5min duration).
Pipes: GB 50268-97 code for construction and acceptance of water supply and drainage pipes GB/T 10002.
Have the top roof and side ventilation windows as natural air fresh ventilation.
1. Top ventilation: per span have one electric roll motor.
2. Side ventilation: water pad sides have two manual roll-up units. each motor rolls up 60m
plastic film. both sides have 2 electric roll-up motors. each motor rolls up 100m of plastic film
3. Steel material: film rolling rod: φ25*1.5mm, extendable rod for rolling: φ32*1.5mm
4. Electric roll up motor: 80w, with climber and cable
film fixed parts: plastic clip φ25
with anti-insect net 40 mesh
Irrigation Systems
This system is a water and fertilizer integrated system that allows you to add soluble fertilizer to irrigation water, the intelligent and pre-programmed sensors can allow you to timely grasp the nutrient absorption of the crop.
The system's parameters are flexible and adjustable so you can easily and quickly change the fertilization ratio so the crop can intake the right amount of nutrients at the right time.
EC/PH monitoring accurately controlling the proportion of nutrients, and accurately formulating the liquid formula fertilizer required for various crops, according to needs. Quantitative automated fertilization.
Features
- Mix the water and fertilizer well
- Stable and accurate EC/PH control
- 7-10' touch screen control, easy operation
- With filter and pressure monitors
- Suitable for different scale irrigation, control multi-way solenoid valve
- Water-saving,fertilizer-saving,manpower-saving
Main systems
- PVC pipes of different dimensions
- Electrical valves with automatic flow control for irrigation
- Mechanical valves
- Distribution lines
- Connection fittings
- Nutrients tanks
- Pumps
- Filters
Circulation Fans
In support of airflow in the greenhouse to achieve an equal climate, we offer you an installation with circulation fans, serially mounted. The fans will be suspended from the trellis utilizing suspension brackets.
The installation consists of:
- Frame Material: Stainless Steel Shell
- Blade Material: Stainless Steel 304
- Size: ϕ500mm x 300mm
- Air Discharge: 5200 m3/h
- Power Consumption: 0.18Kw/h
- Blade Rotational Speed: 1400 rpm
- All required cabling and mounting materials
Water Treatment System
This system provides the water for the irrigation system and the boiler.
Output capacity: 10 tons per hour
Pre-treatment Unit:
- Anto water feed units
- Water feed conduct meter CM230
- Water pump CHL12-50 3KW
- Stop return valve DN63
- Filters Φ1200×2200mm
- Pressure meter
Auto feed Scale inhibitors Unit:
- Weigh Tank:500L
- Weigh Pump: RD-06-07
- Filters
- Pressure meter

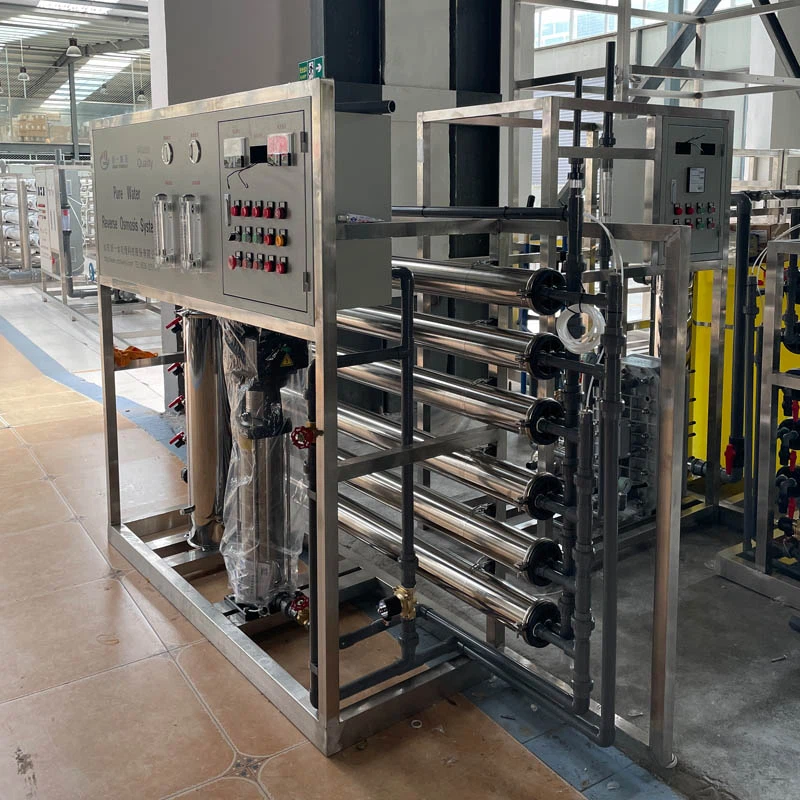

RO Body Machine:
- High Pressure Pump: CDL16-12 11KW
- RO BW30-400/365
- Flow meter
- Pressure meter
- Valves
- Conductmeter
Cleaning System:
Washing pump, filters, tubes, connectors, cleaning agent tank, etc.

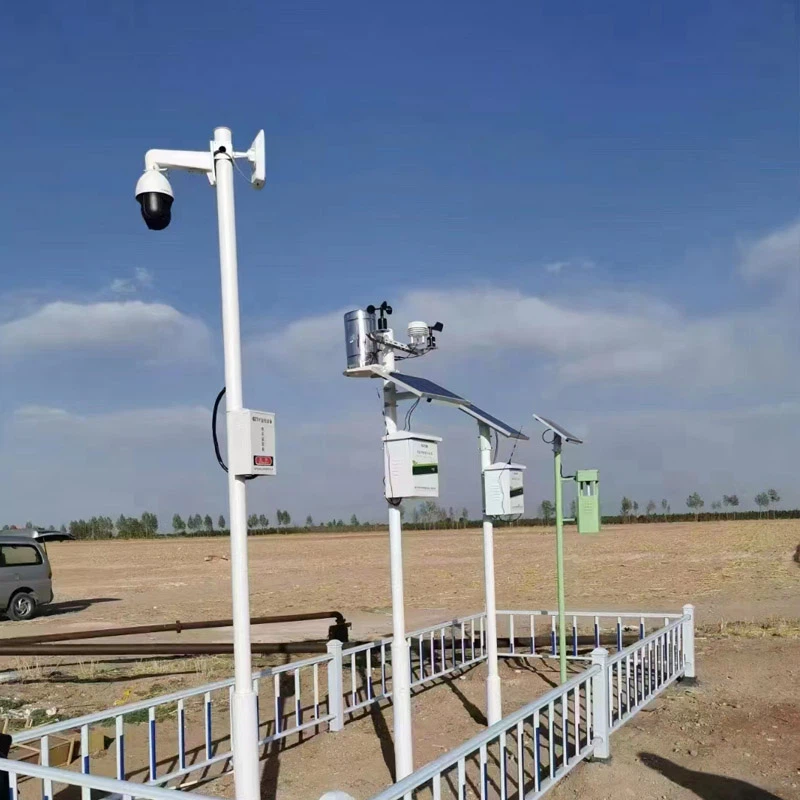

Climate Control And Measurement Equipment
The control of the parameters of the microclimate, taking into account the changes in external meteorological conditions, is ensured by automatic control of the heating system, the position of the ventilation, the evaporative cooling system, and other engineering equipment.
The use of an automated microclimate control system in greenhouses provides:
Increased vegetable yields
Reducing energy consumption
Improving the reliability and efficiency of the equipment
Getting reliable and timely technological information
Hot Water Boilers
Heating systems are planned to give maximum effectivity distribution of the heat. The heating system includes boilers, burners, pressure expansion systems, filters, connections, heating tubes, tube supports, CO2 systems, etc. All compartments are designed by our experienced engineers.
General information
- Fuel Type: Natural gas/Diesel
- Material: High-temperature and pressure-resistant boiler steel
- Output Capacity: 2.8(240) MW(104kcal/h)
- Heating area: 10000㎡
- Quantity of boiler: 3 units
- Main Heating Pipe: 150mm
Heating system temperature
- Temperature supply grow tube heating: 45℃, return 35℃
- Temperature supply service area heating: 70℃, return 55℃
- Temperature supply water transport tube: 90℃, return 47℃
Temperature Control
- Outside temperature: -14℃
- Wind speed: 5m/sec
- Inside temperature: 18℃
Control and Safety Equipment
- Air pressure switch in the flue gas channel
- Max. hydronic thermostat
- Flue gas thermostat
- Water thermostat
Heating Fan
The heater shell is made of a hot galvanized steel plate; the blowing fan is made by once-stamping and molding, with no rust and no deformed, and all is treated through the dynamic balance, effectively ensuring the air volume, reducing noise, and extending the service life;
The motor is installed externally, national standard copper core motor ensures the motor's working life under continuous high-temperature
Generator
The generator provides the power for the greenhouse emergency when the power shuts down.
- Engine：6D10D235A
- Power：258kw
- Electric generator： HQF-200
- Size：3500*1300*2000
- Dry air filter, fuel filter Machine, oil filter, cooling filter
Harvest Transport Tools
Tools required in the greenhouse, are electrical and can be recharged.
Provide 6 units auto lifting picking carts, 2 units of pulling traction carts, and 20 units of harvesting carts.

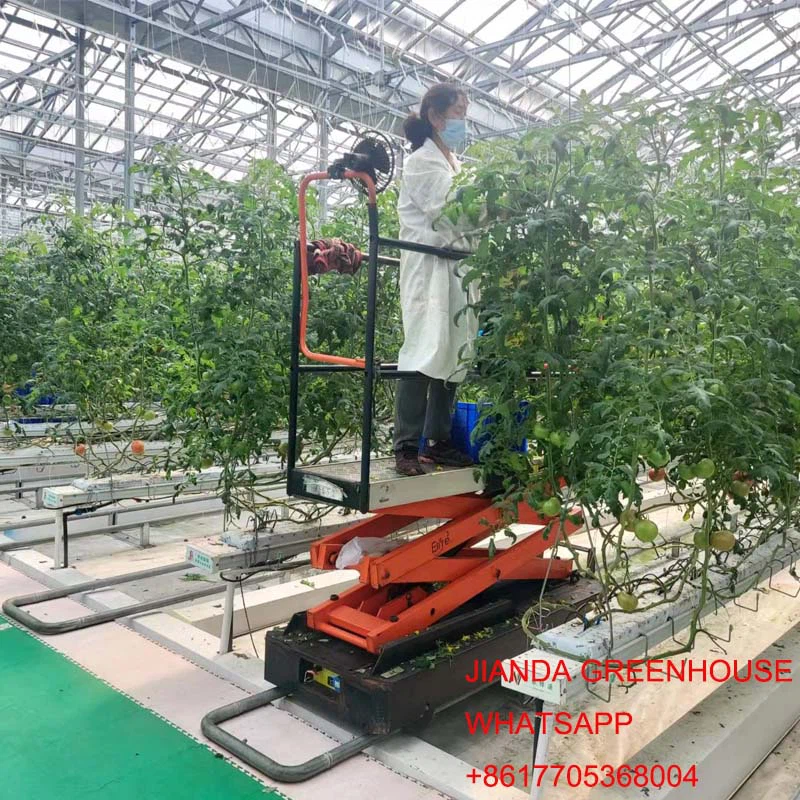

Picking Carts:
- Platform lifting height: 3.1m
- Auto hydraulic lifting system
- Auto forward and backward
- Land wheel and lifting
- Land wheel can side shift
- Size:2130*735*1753mm
Pulling Carts&Harvesting Carts:
The Pulling carts and Harvesting Carts are working together, the pulling carts can pull several harvesting carts.
Pulling Traction carts size: 1790*820*1250mm
Harvesting Carts size:2420*600*1700mm

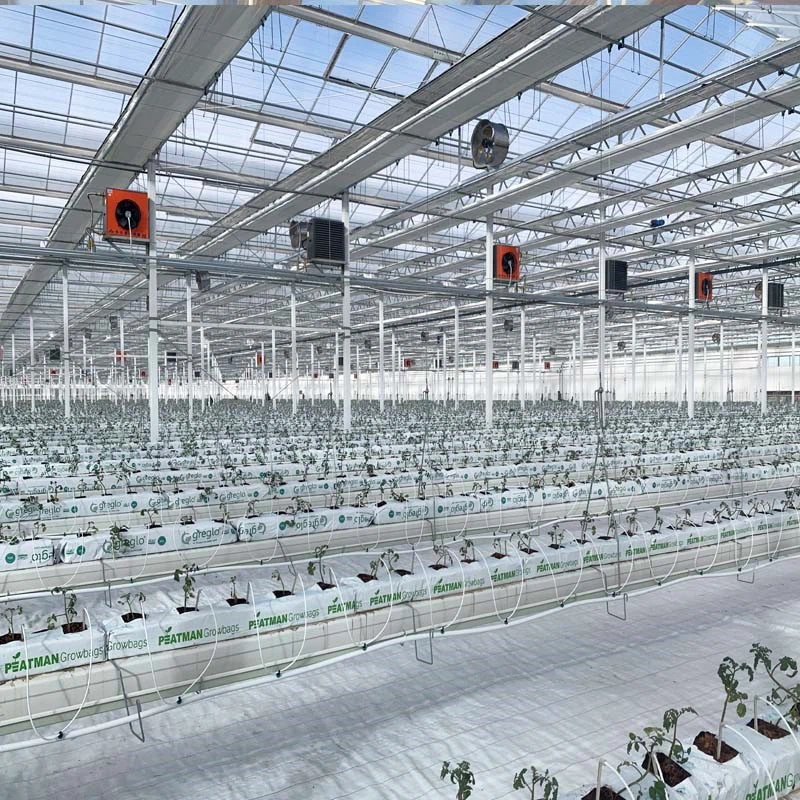

Hydroponic System of Agricultural Greenhouses
There are many hydroponic systems used for greenhouse, the common and popular ones used in greenhouses for soilless cultivation are: the NFT system and substrate cultivation

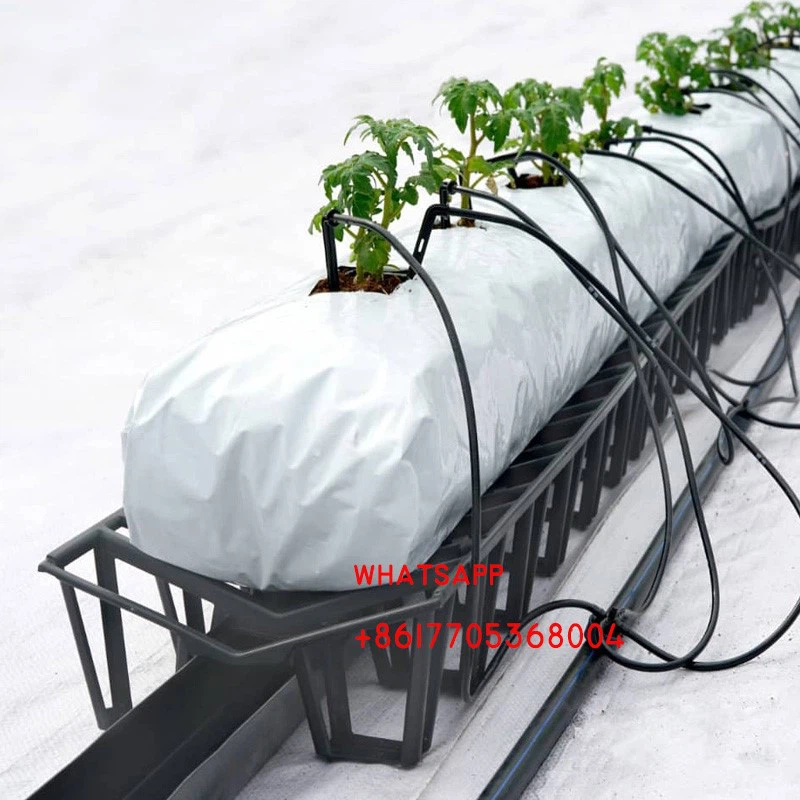

coco coir peat for vegetable tomato, cucumber, and sweet pepper
Coco peat for vegetable soilless cultivation
Features:
coco peat size: 100*12*15
Supporting growing gutter bracket height 70cm
Plating gutter size: 21*19*9 cm, have another size for options
Dutch/Bato bucket for growing tomatoes. sweet pepper. Melons
Growing planting buckets for vegetable tomatoes, cucumbers, sweet peppers, and melons with an irrigation system in the greenhouse
Growing planting gutter for strawberry
Planting groove for strawberry with substrate cultivation
this soilless cultivation is very good for strawberry
NFT system for leafy greens with flat tube
A frame vertical hydroponic system with depth-less scream m the flat tube size 8*8.5cm
this hydroponic system for lettuce etc leafy greens
A frame vertical farming
Including frame, growing groove, and water supply pipes, and also have a fertilizer system to control PH and EC. The nutrient technique is needed for hydroponic farming
Ebb and flow bench
This kind of hydroponic system can plant flowers, medical crops, and seeding bench
Misting and high-pressure fogging system with spray pipes and drip arrow
Provide the humidity for the vegetable flower growing, also can down the temperature in the greenhouse in the hot season
Rolling seeding bench
Save planting space, planting flowers, and as the seeding bench

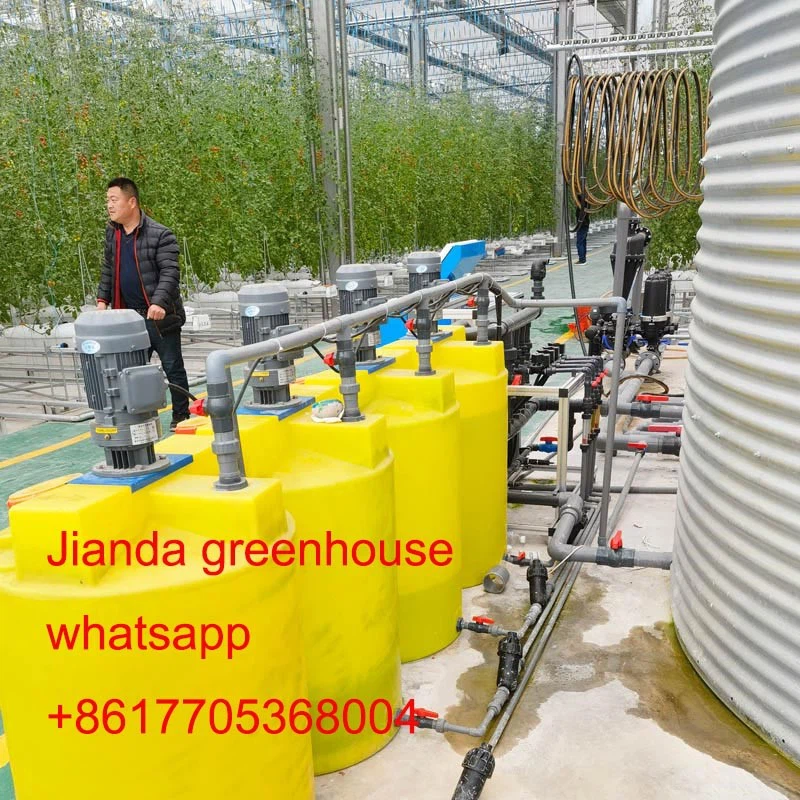

Fertilizer machine with the water tank
Fertilizer machines and water tanks are also a need for hydroponics equipment for agricultural houses, fertilizer machines can control the PH and EC to ensure good nutrients to recirculate water to the plants.
Irrigation system
Irrigation systems provide the water for crops and greens growing
FAQ
Question & Answer for greenhouse, our greenhouse advantages:
Q: 1. Who are we?
Q: 2. How to arrive at our company?
Q: 3. What are our main products?
Q: 4. What is our solution?
Q: 5. What hydroponic system do we have?
Q: 6. How to guide the greenhouse installation?
Q: 7. What are our professional advantages?
Q: 8. What are the advantages of using film greenhouse?
Q: 9. How long is the delivery time?
Q: 10.How long is the warranty period?
Q: 11. Is your company a foreign trade company or manufacturer?
Q: 12. Can you supply a sample?
Q: 13. Can your company supply greenhouse design?
Q: 14. How to install a greenhouse?
The client should hire enough local workers to do the installation work.
Q: 15. When installing, what cost should we pay?
Q: 16. What is the payment terms?
We're professional greenhouses manufacturers and suppliers in China, featured by good service and competitive price. Please feel free to buy high quality greenhouses made in China here from our factory. For more information, contact us now.
Single Span Greenhouse, Tomato Greenhouse Farm, Greenhouse Sun shading
