PC Greenhouse For Agriculture

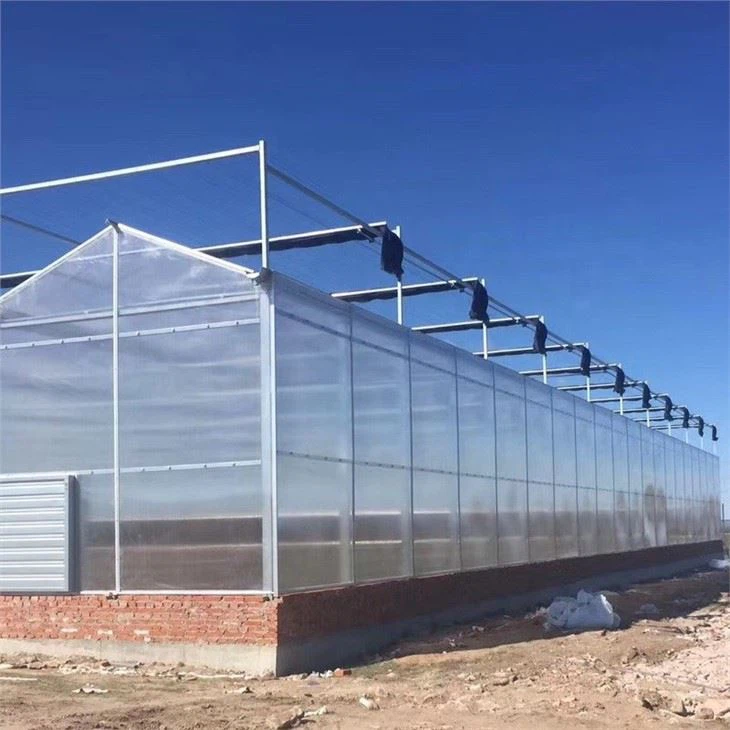

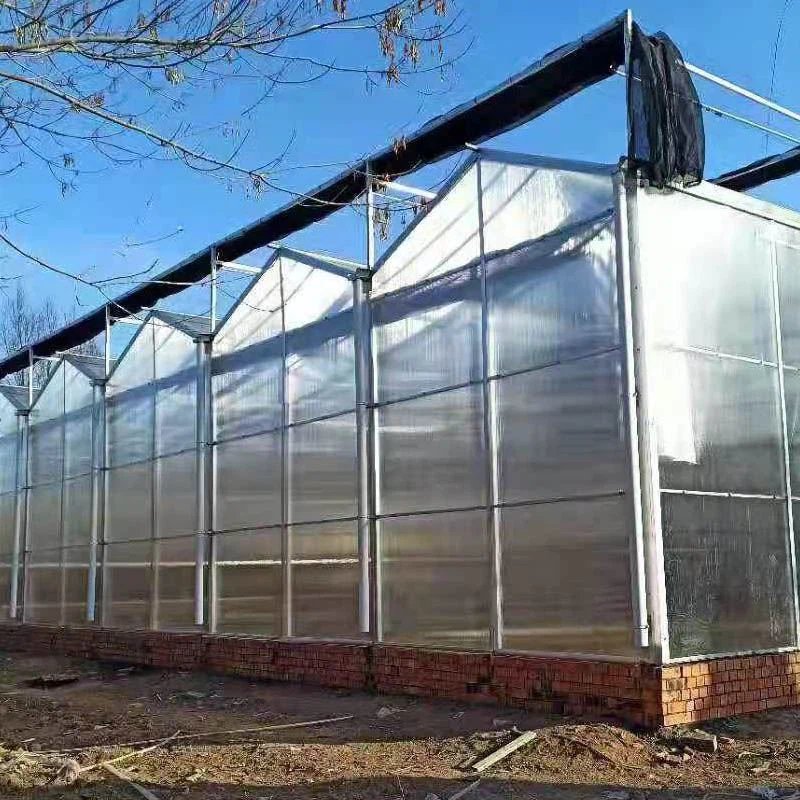

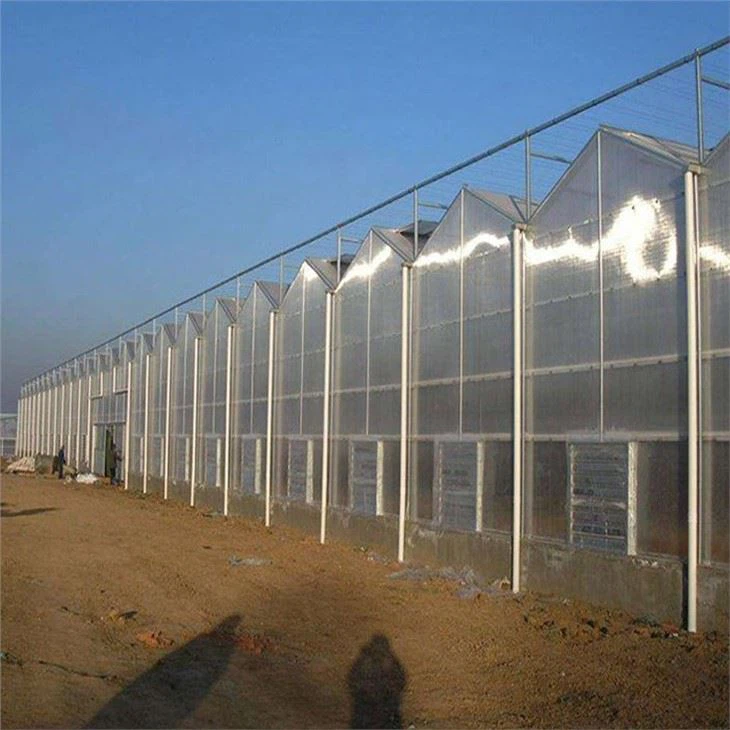

Venlo PC greenhouse, covering material is 8mm polycarbonate sheet, steel structure is hot dip galvanized square pillars, also with hydroponic systems for vegetables,  and cooling system, shading system and ventilation system

Venlo PC greenhouse, span is 12m, or 8m, 9.6m,  12m is good cost saving.

Covering 8m PC sheet, also have 6mm, 10mm for optional choose.

Special alunimum profile to fixed the PC sheet on the greenhouse steel structure.

Outside sun shading with black sun net, will keep greenhouse cool when the sun rised.

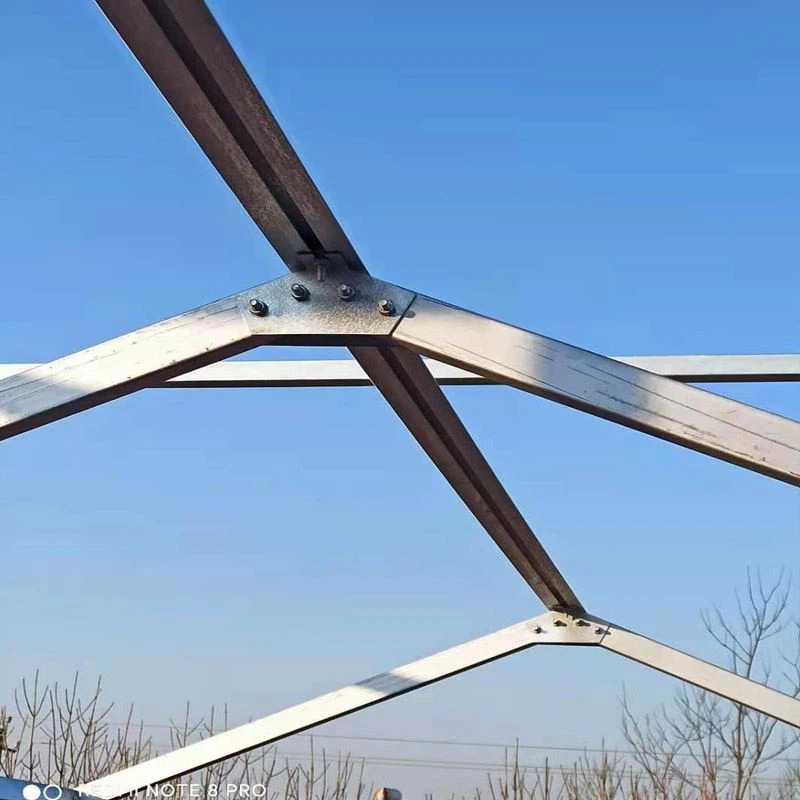

Whole greenhouse no welded the folloing is structure and aluminum profile

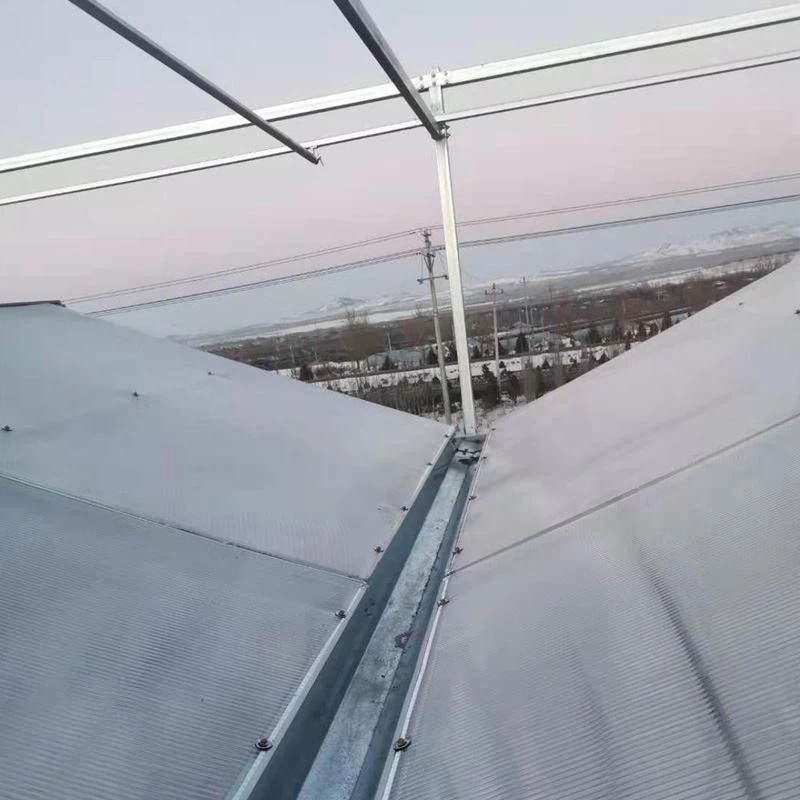

This is outside sun shading steel frame. and rain drain gutter on the greenhouse roof.

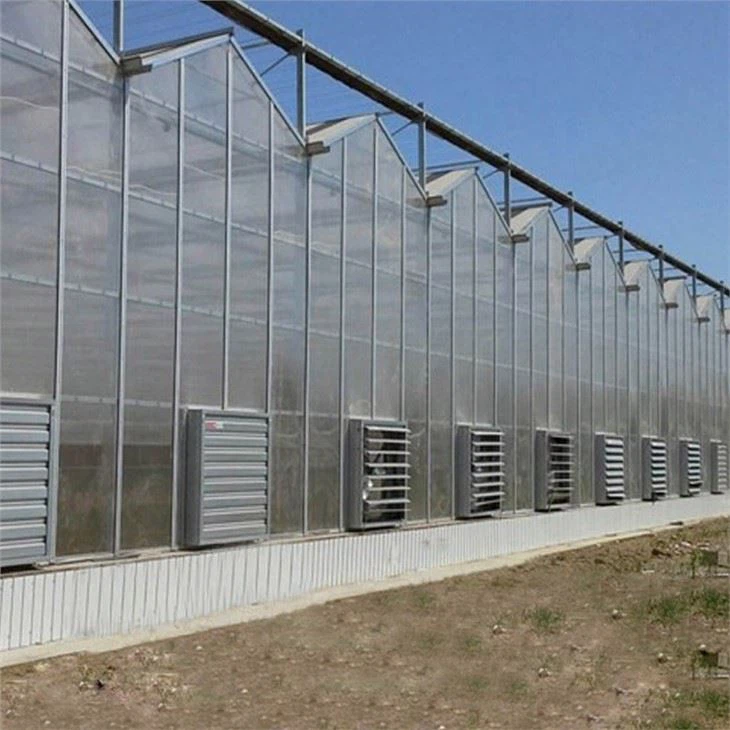

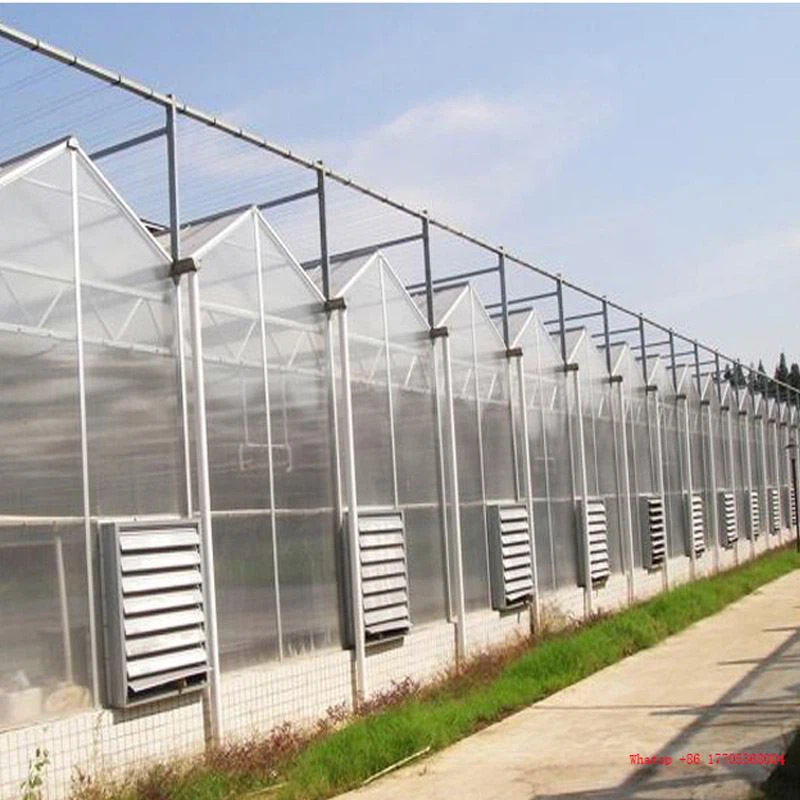

This is cooling fan for cooling system

The sun panel  greenhouse  has the following characteristics

(1) Light transmittance: The light transmittance of the PC solar panel can reach up to 89%, which is as beautiful as glass. UV-coated panels will not produce yellowing, atomization, and poor light transmission under sunlight. After ten years, the loss of light transmission is only 10%, the loss rate of PVC is as high as 15%-20%, and the glass fiber is 12 %-20%.

(2) Impact resistance: The impact strength is 250-300 times that of ordinary glass, 30 times that of acrylic sheets of the same thickness, and 2-20 times that of tempered glass. There will be no cracks even if it falls two meters under a 3kg hammer. The reputation of "glass" and "sound steel".

(3) Anti-ultraviolet: One side of the PC board is co-extruded with an anti-ultraviolet (UV) coating, and the other side has an anti-condensation treatment, which integrates anti-ultraviolet, heat insulation and anti-fogging functions. It can block ultraviolet rays from passing through, and is suitable for protecting valuable artworks and exhibits from damage by ultraviolet rays.

(4) Light weight: the specific gravity is only half of that of glass, saving the cost of transportation, handling, installation and supporting frame.

(5) Flame-retardant: National standard GB50222-95 confirms that the PC sunlight board is flame-retardant grade one, that is, grade B1. The ignition point of the PC board is 580℃, and it will self-extinguish after leaving the fire. It will not produce toxic gas during combustion and will not promote the spread of the fire.

(6) Flexibility: According to the design drawing, cold bending method can be adopted on the construction site, and it can be installed into an arch, semi-circular roof and window. The minimum bending radius is 175 times the thickness of the adopted plate

Wind load resistance: 0.6KN/M², 10 and strong wind, snow load resistance: 0.5 KN/M²,

The constant load of the greenhouse: 15KG/ M², the maximum drainage of the greenhouse: 140MM/h.
